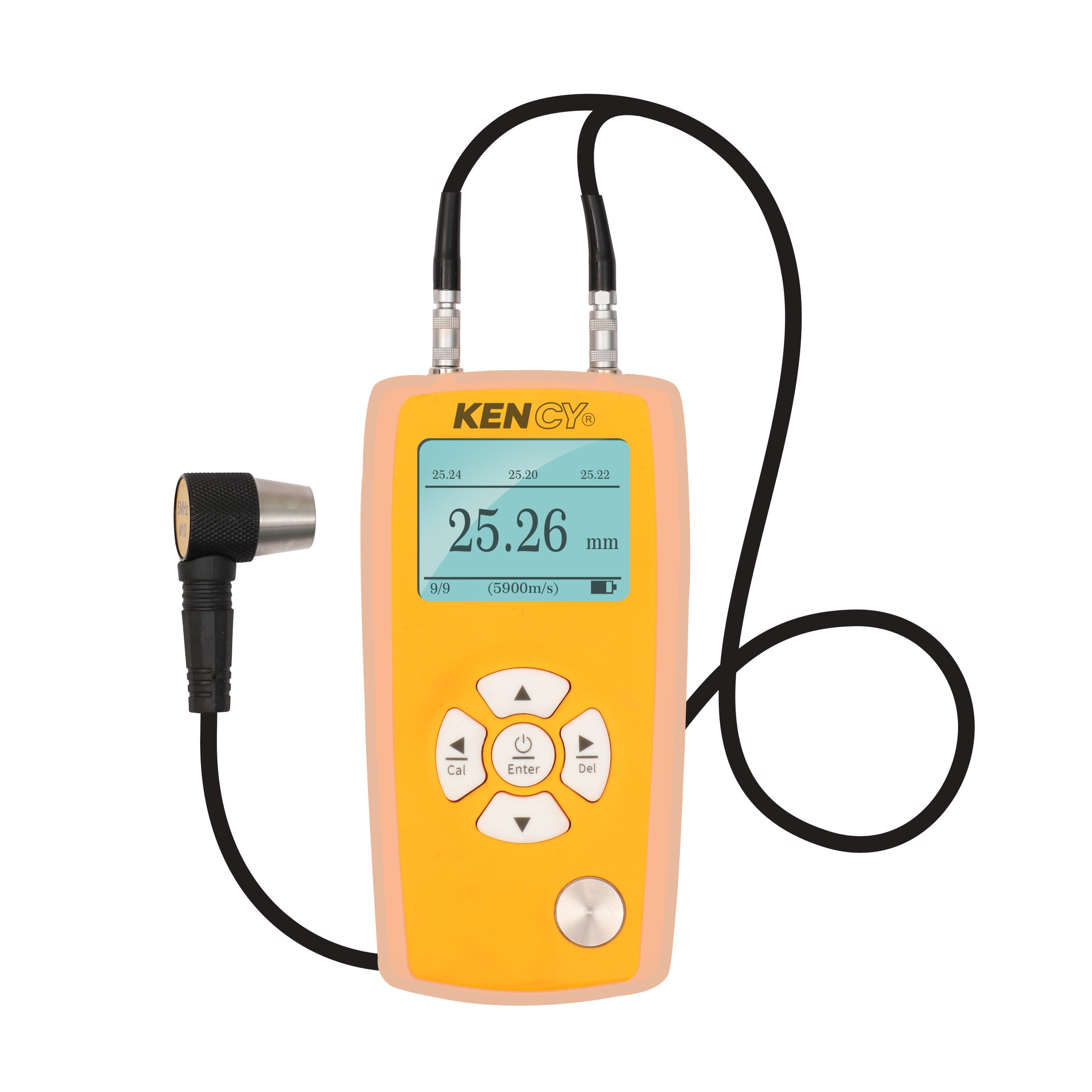

Features

Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other Ultrasonic wave well-conductive materials.

Transducer models are available for special application, including for coarse grain materials and high temperature applications.

Functions: Probe-Zero, Sound-Velocity-Calibration, Two-Point Calibration.

Indicators: Coupling Status Indicator, Battery Status Indicator.

Auto Sleep and Auto Power Off to conserve battery life.

USB port with Protective Membrane and Data Pro software to process memory data on PC.

Adjustable gain makes it easier to test cast iron material.

Four measurements readings per second for single point measurement.

Memory up to 5 files (up to 100 values for each file).

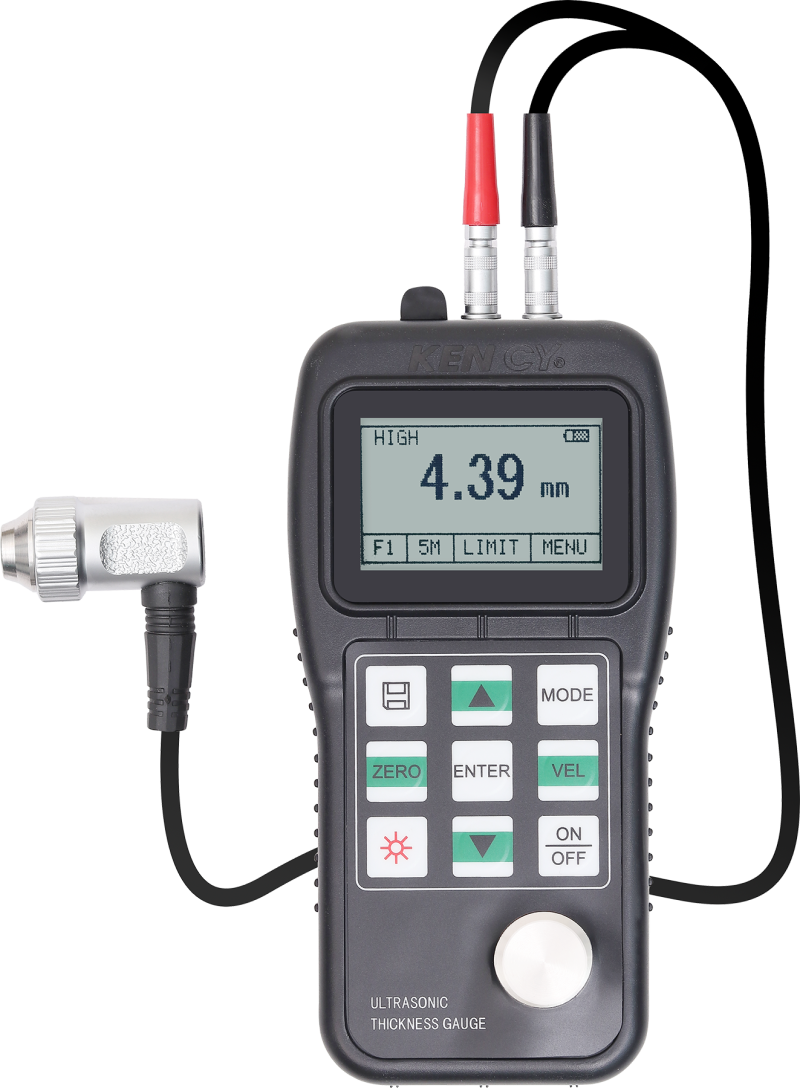

Model	NDT300
Display	128 x 64mm LCD with LED back-light.
Measuring Range	0.75mm~300.0mm [0.03inch~11.8 inch]
Sound Velocity	1000m/s~9999m/s [0.039~0.394in/ µs]
Display Resolution	0.01mm [lower than 100.0mm], 0.1mm [more than 100mm]
Accuracy	±[0.5% thickness +0.02]mm, depends on Materials and conditions
Units	Metric/Imperial unit selectable. Lower limit for steel pipes.
5MHz Probe	F20mm3.0mm[F0.80.12 inch]
10MHz Probe	F20mm3.0mm[F0.60.08 inch]
Power Source	1.5V AA batteries [2 nos.], 100 hrs operating time.
Communication	USB serial port
Dimension	150mm x 74mm x 32mm
Weight	238g
